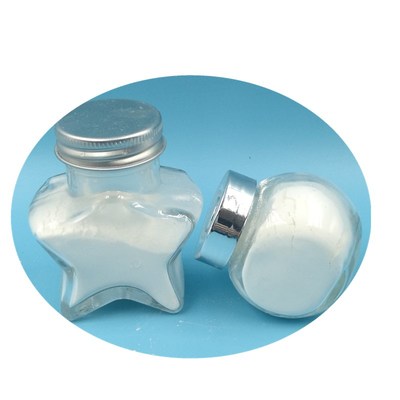

Nano-AlN
CAS：24304-00-5
Technical Parameters:
Model | YQ-A01 | YQ-A015 |
APS ( nm) | 50 | 500 |
Purity（%） | ≥99.9 | ≥99.5 |
O (ppm) | ≤80 | ≤100 |
Ca (ppm) | ≤30 | ≤50 |
Al (ppm) | ≤30 | ≤50 |
Fe (ppm) | ≤30 | ≤50 |
Mg (ppm) | ≤30 | ≤50 |
Na (ppm) | ≤30 | ≤50 |
Note: If the user needs the other particle size , the company provides customized production
Product performance:
High purity is more than 99%, and particle size distribution is controllable (50-500nm, customizable).
Application area:
High thermal conductivity and insulating material
High temperature crucible
Electronic packaging materials
3D printing materials and so on
Application example:
Nano-lubricants and antiwear agent: Nano ceramic oil added to the modified nano aluminum nitride ceramic particles inside the engine with lubricating oil acting on the friction pair of metal surfaces, high temperatures and under extreme pressure is activated, and solid infiltration embedded into the metal surface dents and microporous repair damaged surface, the formation of nano-ceramic protective film.Because the effect of isolation of this membrane, the relative movement between the friction generated in the parts only role in this layer of protective film, and nano-ceramic particles like small ball parts of friction between the friction pair from the traditional sliding friction into rolling friction, which greatly reduces the friction, the friction between the moving parts is reduced to almost zero play a superior anti-wear protective effect on the engine, by improving the lubrication, which reduces the friction coefficient of more than 80%, improve the abrasion resistance of more than 350% more than 80 percent, reducing wear and tear and prolong the mechanical parts life of more than three times, reduced downtime, lower maintenance costs, extending the overhaul period more than doubled, energy-saving 10% -30%, increase power output by 20% -40%, add it only two ten thousandths to one-thousandth.
